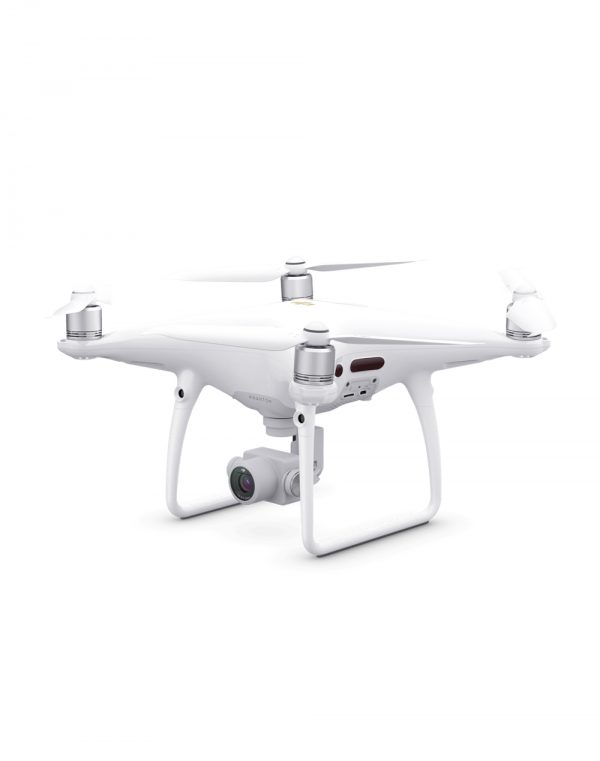

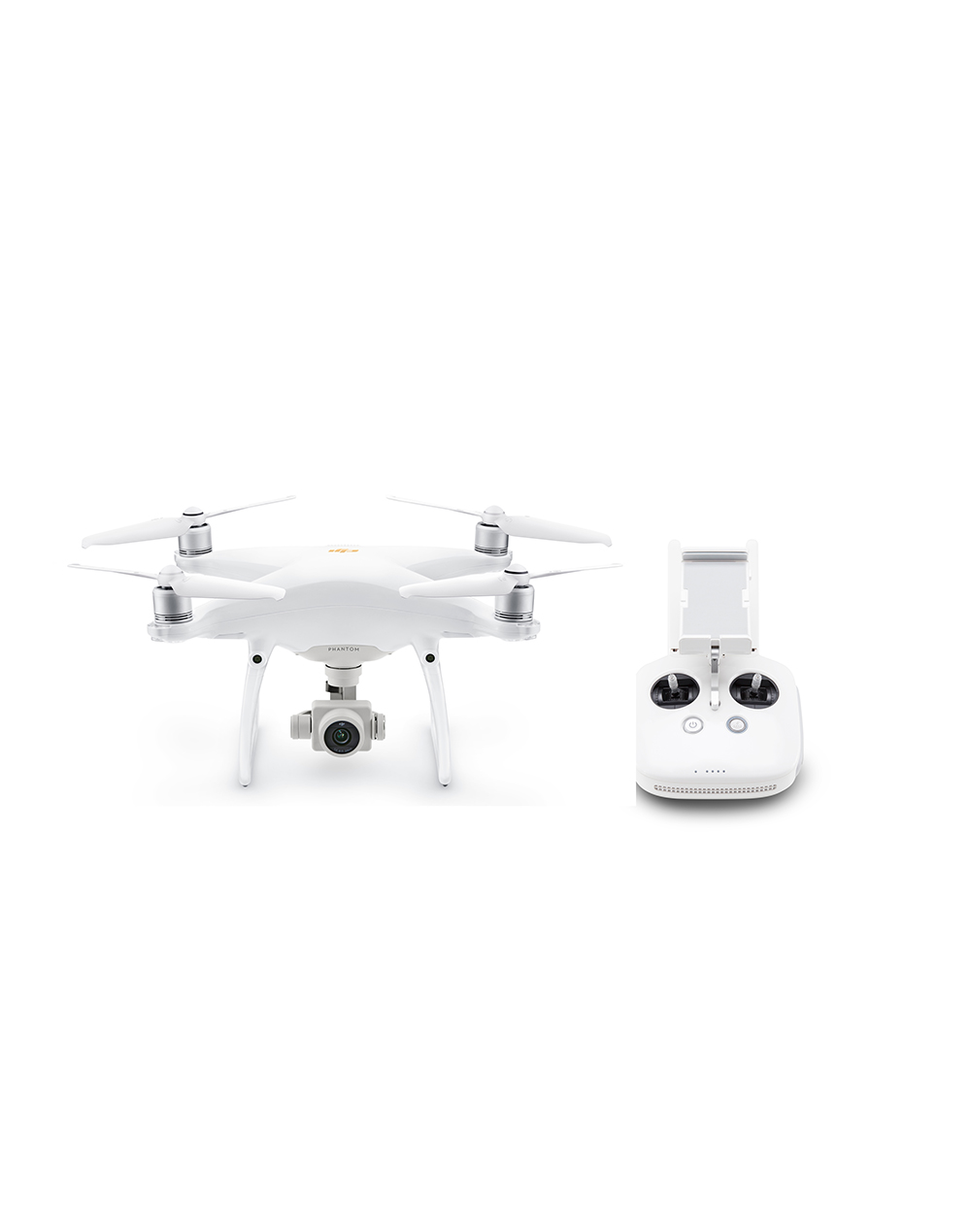

Phantom 4 Pro V2.0
Availability: สินค้าหมดแล้ว
An uprated camera is equipped with a 1-inch 20-megapixel sensor capable of shooting 4K/60fps video and Burst Mode stills at 14 fps.The adoption of titanium alloy and magnesium alloy construction increases the rigidity of the airframe and reduces weight, making the Phantom 4 Pro similar in weight to the Phantom 4. The FlightAutonomy system adds dual rear vision sensors and infrared sensing systems for a total of 5-direction of obstacle sensing and 4-direction of obstacle avoidance.
60fps
1-inch Image Sensor
Mechanical Shutter
5-Direction of Obstacle Sensing
4.3mi (7km) long-range control
30-minute Flight-time
Dual Coding
56,200 ฿
สินค้าหมดแล้ว
- รายละเอียด
AIRCRAFT
| Weight (Battery & Propellers Included) | 1388 g |
|---|---|
| Diagonal Size (Propellers Excluded) | 350 mm |
| Max Ascent Speed | S-mode: 6 m/s P-mode: 5 m/s |
| Max Descent Speed | S-mode: 4 m/s P-mode: 3 m/s |
| Max Speed | S-mode: 45 mph (72 kph) A-mode: 36 mph (58 kph) P-mode: 31 mph (50 kph) |
| Max Tilt Angle | S-mode: 42° A-mode: 35° P-mode: 25° |
| Max Angular Speed | S-mode: 250°/s A-mode: 150°/s |
| Max Service Ceiling Above Sea Level | 19685 feet (6000 m) |
| Max Wind Speed Resistance | 10 m/s |
| Max Flight Time | Approx. 30 minutes |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Satellite Positioning Systems | GPS/GLONASS |
| Hover Accuracy Range | Vertical: ±0.1 m (with Vision Positioning) ±0.5 m (with GPS Positioning) Horizontal: ±0.3 m (with Vision Positioning) ±1.5 m (with GPS Positioning) |
VISION SYSTEM
| Vision System | Forward Vision System Backward Vision System Downward Vision System |
|---|---|
| Velocity Range | ≤31 mph (50 kph) at 6.6 ft (2 m) above ground |
| Altitude Range | 0 – 33 feet (0 – 10 m) |
| Operating Range | 0 – 33 feet (0 – 10 m) |
| Obstacle Sensory Range | 2 – 98 feet (0.7 – 30 m) |
| FOV | Forward: 60°(Horizontal), ±27°(Vertical) Backward: 60°(Horizontal), ±27°(Vertical) Downward: 70°(Front and Rear), 50°(Left and Right) |
| Measuring Frequency | Forward: 10 Hz Backward: 10 Hz Downward: 20 Hz |
| Operating Environment | Surface with clear pattern and adequate lighting (lux>15) |
CAMERA
| Sensor | 1’’ CMOS Effective pixels: 20M |
|---|---|
| Lens | FOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8 – f/11 auto focus at 1 m – ∞ |
| ISO Range | Video: 100 – 3200 (Auto) 100 – 6400 (Manual) Photo: 100 – 3200 (Auto) 100- 12800 (Manual) |
| Mechanical Shutter Speed | 8 – 1/2000 s |
| Electronic Shutter Speed | 8 – 1/8000 s |
| Image Size | 3:2 Aspect Ratio: 5472 × 3648 4:3 Aspect Ratio: 4864 × 3648 16:9 Aspect Ratio: 5472 × 3078 |
| PIV Image Size | 4096×2160(4096×2160 24/25/30/48/50p) 3840×2160(3840×2160 24/25/30/48/50/60p) 2720×1530(2720×1530 24/25/30/48/50/60p) 1920×1080(1920×1080 24/25/30/48/50/60/120p) 1280×720(1280×720 24/25/30/48/50/60/120p) |
| Still Photography Modes | Single Shot Burst Shooting: 3/5/7/10/14 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias Interval: 2/3/5/7/10/15/20/30/60 s |
| Video Recording Modes | H.265 C4K:4096×2160 24/25/30p @100Mbps 4K:3840×2160 24/25/30p @100Mbps 2.7K:2720×1530 24/25/30p @65Mbps 2.7K:2720×1530 48/50/60p @80Mbps FHD:1920×1080 24/25/30p @50Mbps FHD:1920×1080 48/50/60p @65Mbps FHD:1920×1080 120p @100Mbps HD:1280×720 24/25/30p @25Mbps HD:1280×720 48/50/60p @35Mbps HD:1280×720 120p @60MbpsH.264 C4K:4096×2160 24/25/30/48/50/60p @100Mbps 4K:3840×2160 24/25/30/48/50/60p @100Mbps 2.7K:2720×1530 24/25/30p @80Mbps 2.7K:2720×1530 48/50/60p @100Mbps FHD:1920×1080 24/25/30p @60Mbps FHD:1920×1080 48/50/60 @80Mbps FHD:1920×1080 120p @100Mbps HD:1280×720 24/25/30p @30Mbps HD:1280×720 48/50/60p @45Mbps HD:1280×720 120p @80Mbps |
| Max Video Bitrate | 100 Mbps |
| Supported File Systems | FAT32 (≤32 GB); exFAT (>32 GB) |
| Photo | JPEG, DNG (RAW), JPEG + DNG |
| Video | MP4/MOV (AVC/H.264; HEVC/H.265) |
| Supported SD Cards | Micro SD Max Capacity: 128GB Write speed ≥15MB/s, Class 10 or UHS-1 rating required |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
CHARGER
| Voltage | 17.4 V |
|---|---|
| Rated Power | 100 W |
APP / LIVE VIEW
| Mobile App | DJI GO 4 |
|---|---|
| Live View Working Frequency | 2.4 GHz ISM, 5.8 GHz ISM |
| Live View Quality | 720P @ 30fps |
| Latency | Phantom 4 Pro: 220 ms (depending on conditions and mobile device) Phantom 4 Pro +：160 – 180 ms |
| Required Operating Systems | iOS 9.0 or later Android 4.4.0 or later |
