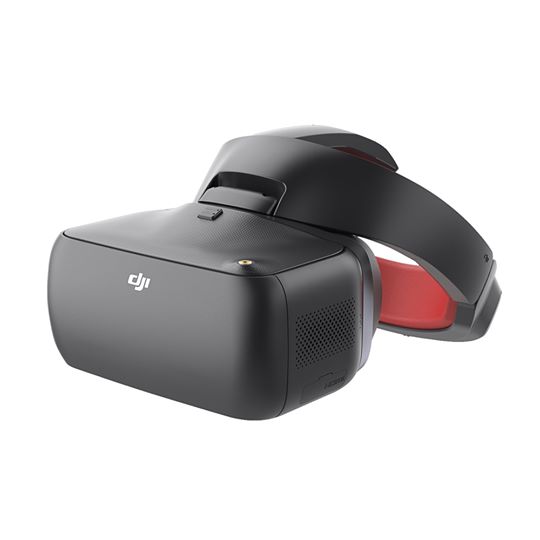

DJI GOGGLES RE
Weight (Typical) DJI Goggles RE Body: 502 g;
Headband: 500 g
Dimensions DJI Goggles RE Body: 195 × 155 × 110 mm;
Headband (folded):255 × 205 × 92 mm
Screen Size 5-inch × 2
Screen Resolution 3840 × 1080 (single screen: 1920 × 1080)
Transmitter Power (EIRP) 2.4 GHz:
25.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC)
5.8 GHz:
25.5 dBm (FCC); 12.5 dBm (CE); 18.5 dBm (SRRC)
Live View Modes 1080p30, 720p60, 720p30
Video Format MP4 (H.264)
Supported Video Play Format MP4, MOV, MKV
(Video format: H264; Audio format: AAC-LC, AAC-HE, AC-3, DTS, MP3)
Battery Capacity: 9440 mAh
Operating Temperature Range 32° to 104° F (0° to 40° C)
Charger Input 100-240 VAC, 50 / 60 Hz, 0.5 A
Output 5 V 3 A / 9V 2A / 12 V 1.5 A
DJI OCUSYNC CAMERA
Sensor 1/3” CMOS;
Effective pixels: 1.2M
Lens 2.65 mm, f/2.0
Lens Group 6G + IR
Shutter Global shutter
ISO 100 – 3200
FOV 148° (D); 111° (H); 79.5° (V)
DJI OCUSYNC AIR SYSTEM
Weight Air Unit: 43.7 g;
Camera (cable included): 18.2 g;
Pagoda Antenna: 9.4 g;
Cylindrical Antenna: 9.4 g;
Dipole Antenna: 4.2 g
Dimensions Air Unit: 72 × 33 × 14 mm;
Camera: 29.4 × 28.2 × 22.6 mm
Communication Frequency 2.4 GHz / 5.8 GHz
Transmitter Power (EIRP) 2.4 GHz:
22.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC)
5.8 GHz:
25.5 dBm (FCC); 12.5 dBm (CE); 25.5 dBm (SRRC)
Live View Modes and Min. Latency 960p50: 70 ms; 720p60: 60 ms; 480p50: 50 ms
Max. Transmission Distance 2.4 GHz:7 km (FCC); 4 km (CE); 4 km (SRRC)
5.8 GHz:4 km (FCC); 0.7 km (CE); 4 km (SRRC)
Recommended Frequency Band 5.8 GHz; CE: 2.4 GHz; SRRC: 5.8 GHz
Video Format MP4 (MPEG4)
I/O Interface S.Bus, Micro USB, PPM, UART, MMCX, Micro SD card slot
Supported Flight Control Systems F3, F4, KISS, NAZE
Supported Remote Controllers X9D (Frsky), DEVO 10 (Walkera), T8FG (Futaba),T14SG (Futaba), WTF09sll (WFLY), AT9S (RadioLink)
Operating Temperature Range 32° to 104° F (0° to 40° C)
Input Power 9-16.8 V (3S-4S)
